About Charles

Charles is a web proxy (HTTP Proxy / HTTP Monitor) that runs on your own computer. Your web browser (or any other Internet application) is then configured to access the Internet through Charles, and Charles is then able to record and display for you all of the data that is sent and received.

SSL Proxying

Charles can act as a man-in-the-middle for HTTP/SSL communication, enabling you to debug the content of your HTTPS sessions.

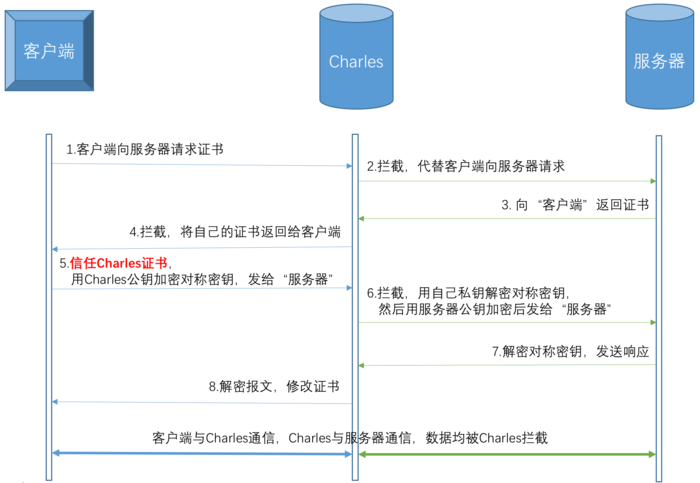

原理


操作

  1. 下载&&安装

https://www.charlesproxy.com/download/

  1. 安装根证书(on MacOS)

help => SSL Proxying => Install Charles Root Certificate

When using this certificate: Always Trust.


  1. 安装客户端证书(on IOS)

help => SSL Proxying => Install Charles Root Certificate on a Mobile Device or Remote Browser

先将 Mac 和 IPhone 连接到同一网段下(同一个WIFI), 根据提示, 在 IOS 中找到: 设置 => 无线局域网 => 配置代理 => 手动

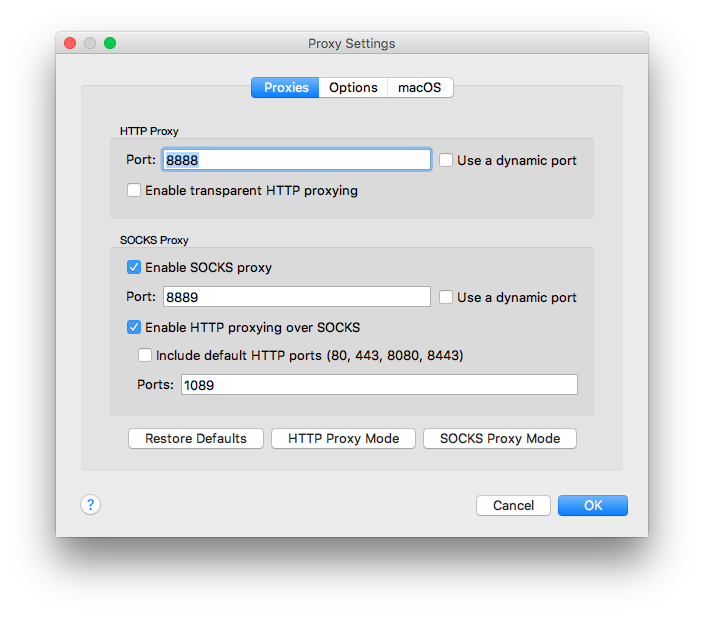

Charles 菜单: Proxy => Proxy Setting


设置好 Proxy 的地址和端口.

在手机浏览器中访问 chls.pro/ssl 安装证书, 信任证书.

新版本的IOS还需要手动启用证书:

  1. 查看描述文件: 设置-通用-描述文件

  2. 信任描述文件: 设置-通用-关于本机-证书信任设置

  3. 添加 SSL Proxying Settings

添加想要监测的域:

Proxy => SSL Proxying Settings => Add

也可以使用通配符: *:*

  1. 配合 shadowsocks

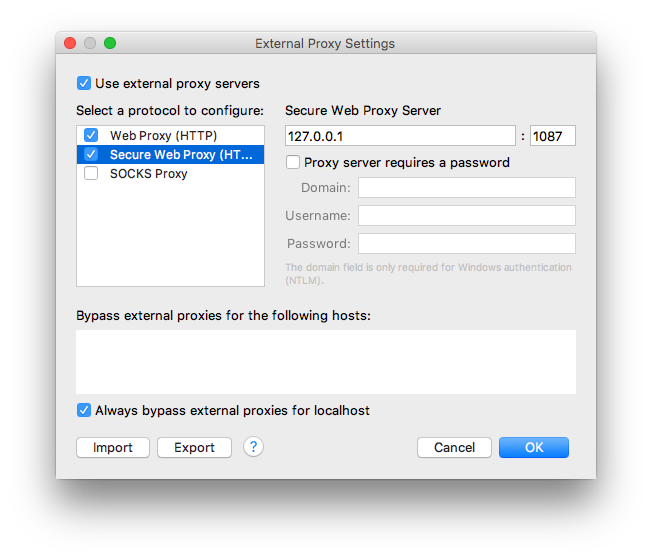

当需要在手机上抓被墙的网站时, 可以让 Charles 使用外部代理(Shadowsocks).
